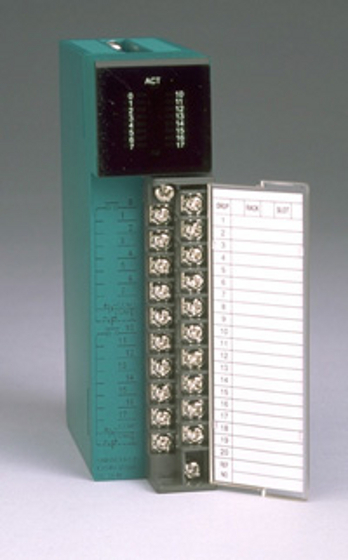

Tealware I/O Modules |
|
Tealware™ is a high density, modular I/O system, suitable for
applications requiring as few as 16 digital and/or 4 analog points up through thousands
of I/O points. The same I/O modules, adapters, and other equipment can be used
regardless of application size or physical configuration. High speed local I/O,
and remote Ethernet I/O configurations are available.
Tealware I/O can be used
with any SoftPLC CPU, or with any other system that can drive ModbusTCP I/O.
|
|
| Overview |
Top |
A complete range of I/O modules are available for the Tealware system – digital,
analog, and specialty modules. Many common features of all modules make the system
robust, and simplify installation and maintenance:
- Detachable front-end terminal block for easy module replacement without re-wiring
(some modules utilize a wiring cable connection, which is also easily detachable)
- Front Panel LED display for status monitoring/troubleshooting
- High noise immunity
- Automatic Configuration - Module addressing based on location (not DIP switch) for easy system configuration & maintenance (manual configuration option also available)
- Digital I/O modules are hot swappable under power
- Low power consumption means all module configurations are possible – no power calculations required
A wide variety of configuration options are possible including high speed local I/O and remote, distributed Ethernet I/O configurations.
Tealware I/O modules mount into a backplane. Two options for module mounting are available:
- Up to (3) modules can be mounted directly to a Smart SoftPLC or Smart Adapter equipped with a Backplane-3 interface
- I/O Bases can hold (6) or (8) modules plus a Tealware Power Supply Module, and connect to a Smart SoftPLC or Smart Adapter via an Expansion I/O Cable
|
| General Specifications |
Top |
| Operating Temperature |
0 to 70° C |
| Ambient Storage Temperature |
-20 to 85° C |
| Airflow Clearance |
50.8mm (2 inches) above and below unit for ambient airflow |
| Humidity |
15 to 95% non-condensing |
| Electrical Noise Immunity |
1,500 volts peak to peak, 1 µs noise width at 30 to 100Hz |
| Vibration Resistance |
10 to 55Hz, amplitude 0.075mm for 60 minutes |
| Shock Resistance |
10g 3 times 3d directions |
| Dielectric Withstand Voltage |
1500VAC for 1 minute across AC external terminals & ground |
| Impedance |
75 MOhms at 500VDC |
| Electrical Safety |
Class 2 protection |
| Operating Atmosphere |
Non-corrosive atmosphere, with minimum dust |
| Certifications & Compliances |
UL, UL(C), CE rated |
|
| Local Configurations |
Top |
|
A Smart SoftPLC provides a high speed local interface to Tealware I/O. You can scan thousands of points in under 1 msec!
Two options are available:
- Any three (3) Tealware modules can mount directly onto a Smart SoftPLC equipped with a Backplane-3 interface.
If more than (3) modules are needed, a Smart SoftPLC equipped with a LocalPorts interface is used.
The LocalPorts interface has (4) I/O Base ports. I/O Expansion Cables,
available in 2', 4', and 10' lengths, connect from the port on the LocalPorts interface to an I/O Base (as well as from I/O Base to I/O Base).
Up to (3) I/O Bases can be connected to each port.
In this configuration, up to 12 I/O Bases (96 I/O modules) are supported for a maximum of 3072 local I/O points,
up to 30 feet from the Smart SoftPLC!

|
| Remote Configurations |
Top |
Tealware I/O can be connected via Ethernet to any SoftPLC CPU or other system that can drive I/O over ModbusTCP protocol,
providing very flexible remote I/O solutions. SoftPLC CPUs support up to 128 remote Tealware I/O drops.
A remote Tealware I/O drop can consist of:
- Up to (3) Tealware I/O modules mounted on a Smart Adapter equipped with a Backplane-3 interface
- Up to (3) racks of Tealware I/O modules connected to a Smart Adapter equipped with a LocalPorts interface
A wide variety of configurations are supported, distance is limited only by Ethernet cabling restrictions.
The Smart Adapter includes an Ethernet switch to make configuration of multiple drops easy, efficient, and low cost.
A Smart Adapter can also include a fiber optic interface to increase the allowed distance between drops and also improve noise immunity.
|
| Digital I/O Modules |
Top |
| Type |
Operating Voltage |
External 24VDC P/S Req'd? |
Number of Points |
Response Time |
Rated Current/Point |
Backplane Current |
Catalog Number |
DC Input
Sink/Source |
9-28 VDC |
|
16, 8/com |
On <= 2 ms
Off <= 2 ms |
3 mA @ 12 VDC
7 mA @ 24 VDC |
100 mA |
SXDC10 |
DC Input
Sink/Source |
9-28 VDC |
|
32, 16/com |
On <= 2 ms
Off <= 2 ms |
3 mA @ 12 VDC
7 mA @ 24 VDC |
180 mA |
SXDC20 |
DC Input
Sink/Source |
90-130 VDC 100-120 VAC |
|
16, 8/com |
On <= 2 ms
Off <= 2 ms |
7 mA |
100 mA |
SXDC125A |
AC Input
Photocoupler |
24 VAC |
|
16, 8/com |
On <= 20 ms
Off <= 35 ms |
15 mA |
100 mA |
SXAC24 |
AC Input
Photocoupler |
85-132 VAC |
|
16, 8/com |
On <= 20 ms
Off <= 35 ms |
15 mA |
100 mA |
SXAC10 |
AC Input
Photocoupler |
170-264 VAC |
|
16, 8/com |
On <= 20 ms
Off <= 35 ms |
10 mA |
100 mA |
SXAC20 |
DC Output
Sink/NPN |
10-35 VDC |
|
16, 8/com
Fused, (2) at 2A |
On <= 2 ms
Off <= 2 ms |
0.1 A |
100 mA |
SYDC10 |
DC Output
Source/PNP |
10-35 VDC |
|
16, 8/com
Fused, (2) at 2A |
On <= 2 ms
Off <= 2 ms |
0.1 A |
100 mA |
SYDC20 |
DC Output
Sink/NPN |
10-35 VDC |
|
32/com
Fused, (4) at 2A |
On <= 2 ms
Off <= 2 ms |
0.1 A |
120 mA |
SYDC30 |
DC Output
Source/PNP |
10-35 VDC |
|
32/com
Fused, (4) at 2A |
On <= 2 ms
Off <= 2 ms |
0.1 A |
100 mA |
SYDC40 |
DC Output
Sink/NPN |
18-30 VDC |
|
16/com
Fused, (2) at 10A |
On <= 1 ms
Off <= 1 ms |
2 A |
100 mA |
SYDC50 |
DC Output
Source/PNP |
10-35 VDC |
|
16/com
Fused, (2) at 10A |
On <= 2 ms
Off <= 2 ms |
2 A |
100 mA |
SYDC60 |
AC Output
Triac SSR |
85-264 VAC |
|
16, 8/com
Fused, (2) at 5A |
On <= 9 ms
Off <= 10 ms |
0.6 A |
200 mA |
SYAC10 |
Relay Output
Dry |
5-125 VDC
12-250 VAC |
Yes |
16, 8/com |
On <= 10 ms
Off <= 5 ms |
2 A |
100 mA |
SYRY10 |
Relay Output
Dry |
5-125 VDC
12-250 VAC |
Yes |
16, Isolated |
On <= 6 ms
Off <= 3 ms |
2 A |
100 mA |
SYRY20 |
Relay Output
Dry |
5-125 VDC
12-250 VAC |
Yes |
8, Isolated |
On <= 6 ms
Off <= 3 ms |
2 A |
100 mA |
SYRY21 |
|
| Analog & Specialty I/O Modules |
Top |
| Type |
Operating Range |
External 24 VDC P/S Req'd? |
Number of Channels |
Step Response Time |
Resolution |
Backplane Current |
Catalog Number |
| Analog
Input |
1-5, 0-10,
±10V
0-20, 4-20, ±20mA |
|
4 AIN |
18ms/ch |
15 bits |
400 mA |
AD020 |
| Analog
Input |
1-5, 0-10,
±10V |
|
8 AIN |
18ms/ch |
12 bits |
400 mA |
AD030 |
| Analog
Input |
0-20,4-20, ±20mA |
|
8 AIN |
18ms/ch |
12 bits |
400 mA |
AD031 |
| Analog Input |
0-10, 1-5, ±10V |
|
16 AIN |
18ms/ch |
12 bits |
600 mA |
AD040 |
| Analog Input |
0-20, 4-20, ±20mA |
|
16 AIN |
18ms/ch |
12 bits |
600 mA |
AD041 |
| Analog I/O
|
0-10
VDC |
|
4 AIN, 2
AO |
10µs/ch |
12 bits |
400 mA |
ADA020 |
| Analog I/O
|
1-5 VDC |
|
4 AIN,
2AO |
10µs/ch |
12 bits |
400 mA |
ADA021 |
| Analog I/O
|
0-20 mA |
|
4 AIN,
2AO |
10µs/ch |
12 bits |
400 mA |
ADA022 |
| Analog I/O
|
4-20 mA |
|
4 AIN, 2
AO |
10µs/ch |
12 bits |
400 mA |
ADA023 |
| Analog
Output |
1-5, 0-10,
±10V
0-20, 4-20, ±20mA |
Yes |
4 AO |
|
14 bits |
400 mA |
DA020 |
| Analog
Output |
1-5, 0-10,
±10V
|
Yes |
8 AO |
|
14 bits |
400 mA |
DA030 |
| Analog
Output |
0-20, 10-20mA, ±20mA
|
Yes |
8 AO |
|
14 bits |
400 mA |
DA031 |
| RTD |
PT-100,
Ni-120 |
Opt |
4 AIN, 4
DO |
18ms/ch |
15 bits |
400 mA |
RTD10 |
|
Thermocouple |
B, E, J, K, R, S,
T |
Opt |
5 AIN, 5
DO |
18ms/ch |
15 bits |
400 mA |
THM10 |
| High Speed
Counter |
5 or 24 VDC,
Phase
or Pulse |
Opt |
3 AIN, 3
DO |
50 KHz
max |
32 bits |
400 mA |
HSC11 |
|
| Misc Modules/Components |
Top |
| Dummy Module for blank I/O slots |
DUM10 |
| Terminal block for 32 pt modules |
XDC20-TB |
| 32 pt module cable to terminal block, 3 feet |
XDC20-CBL |
| Cable for AD04X Modules Channels 1-8 |
AD04x-CBL |
| Cable for AD04X Modules Channels 9-16 |
AD04x-CBLB |
|
| Bases |
Top |
| Local I/O Expansion Base for P/S and up to 6 I/O
Modules |
IOBASE06 |
| Local I/O Expansion Base for P/S and up to 8 I/O
Modules |
IOBASE08 |
| Local Expansion I/O cable, 1 ft |
EXCBL01 |
| Local Expansion I/O cable, 2 ft |
EXCBL02 |
| Local Expansion I/O cable, 4 ft |
EXLBL04 |
| Local Expansion I/O cable, 10 ft |
EXLBL10 |
|
| Power Supplies |
Top |
| AC Power Supply |
Input voltage 85 to 260VAC |
PWS10B |
| DC Power Supply |
Input voltage 12 to 24VDC |
PWS20C |
|
| Remote I/O Adapters |
Top |
| Smart Remote I/O Adapter w/ Tealware Backplane3 interface |
SMA11-B |
| Smart Remote I/O Adapter w/ Tealware LocalPorts interface |
SMA11-L |
| Smart Remote I/O Adapter w/ Tealware PCI-104 interface |
SMA11-P |
| Multi-Mode Fiber Optic Interface, ST Connector |
SM-FMST |
| Multi-Mode Fiber Optic Interface, SC Connector |
SM-FMSC |
| Single-Mode Fiber Optic Interface, 15km, ST Connector |
SM-FSST |
| Single-Mode Fiber Optic Interface, 15km, SC Connector |
SM-FSSC |
| Single-Mode Fiber Optic Interface, 30km, ST Connector |
SM-FLST |
| Single-Mode Fiber Optic Interface, 30km, SC Connector |
SM-FLSC |
| Smart Firewall/VPN Package |
SM-FW |
|
|
|
|
|
 |
|
 |
|
 |
|
 |
|
