| SoftPLC
Corporation :
Products : Hardbook SoftPLCs |
|
|
| General Description |
Top |
|
Hardbook SoftPLC's are open architecture controller CPU's that can connect to a wide variety
of I/O and communication networks. Hardbook SoftPLC's are customized at the factory to
application specific configurations and include hardware assembly, driver installation,
system software configuration, and system level testing.
|
| Firmware Features |
Top |
Hardbook SoftPLC's include the rich set of functions provided by SoftPLC Control Software, including:
- Powerful Ladder Logic instruction set
- Loadable Instructions for specialized or user-written functions
- "Unlimited" user application memory for logic and data table
-
- All application documentation resides in the SoftPLC CPU
- Wide variety of I/O Drivers - ModbusTCP, Tealware™, Profibus, DeviceNet, A-B RIO, many others
- Communication Drivers - A-B Ethernet, DF1, Modbus serial, ModbusTCP/UDP, others
- Compatible with all HMI/SCADA products
- Embedded Gatecraftt™ Firewall technology
- Ladder logic/data table addressing similar to Allen-Bradley PLC-5/SLC-500 - import/conversions available
|
| Common Hardware Features |
Top |
- Multiple Ethernet, Serial, and USB communication ports
- Heavy Duty Metal Enclosure
- Fanless operation
- Removable Compact Flash
|
| Available Models |
Top |
|
Class
|
Cat
No
|
Ethernet Ports
|
Serial Ports
|
USB Ports
|
Expansion
|
|
Tiny Hardbook
|
HB-TOLA
|
1
|
2
|
3
|
mPCI (wireless)
|
|
Mini Hardbook
|
HB-MOLA
|
2
|
1
|
2
|
mPCI (wireless), IDE (HDD/SSD)
|
|
HB-MOLB
|
2
|
4
|
3
|
|
HB-MOLC
|
2
|
4
|
4
|
mPCI (wireless), IDE (HDD/SSD)
|
|
HB-MOLD
|
2
|
2
|
2
|
|
Half-Size Hardbook
|
HB1-HPLA
|
2
|
4
|
6
|
(1) PCI, IDE (HDD/SSD)
|
|

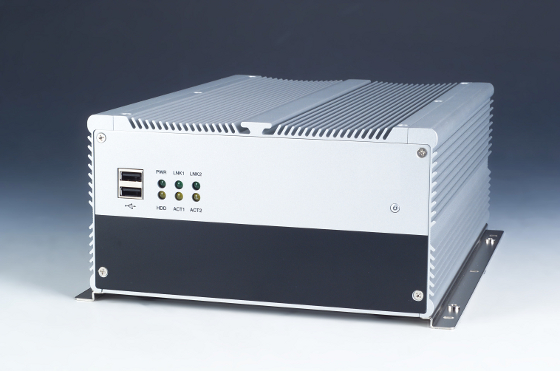

HB2-HPLA
|
2
|
4
|
4
|
(2) PCI, IDE (HDD/SSD)
|
|
HB2-HPLB
|
2
|
4
|
4
|
(2) PCI, IDE (HDD/SSD)
|
|
HB4-HPLA
|
2
|
4
|
4
|
(4) PCI, (1) PC Card, IDE (HDD/SSD)
|
|
| Recommended Options |
Top |
- Din Rail Mount Power Supply
- SoftPLC Embedded Web Server
- Gatecraft™ Link Industrial Ethernet Switch
- Uninterruptible Power Supply
- Surge Suppression Equipment
- TOPDOC NexGen Development/Maintenance Software
|
|
|
|
|
 |
|
 |
|
|
|
|
|
